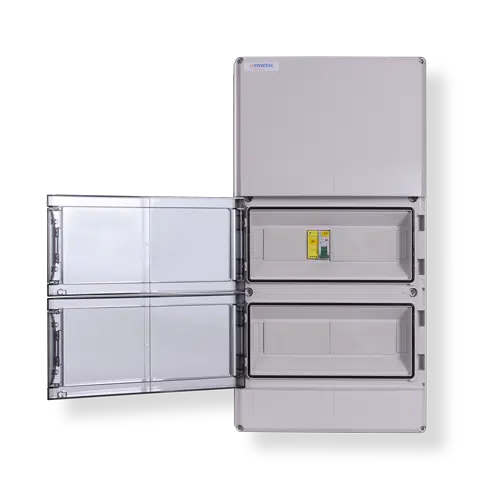

Automatic mains changeover
– Connection fuse max. 63A
– All-pole and three-pole disconnection, TN-S or TT system
– NO TN-C mains in the customer system
suitable for
KOSTAL PLENTICORE G3
Country availability: Germany, Switzerland
Note
3PH_KOSTAL_BBD3(A)P_63A_DE-CH
Item no.: 10017468
Compatible with: KOSTAL
Phases: 3-phase
Mains disconnection: All-pole and three-pole disconnection
Max. thermal throughput: 20 kW optional with ventilation pieces 30 kW
Country code: Germany, Switzerland
NA protection: –
Source switch: –
Rated voltage: 3PH – 230/400V
Rated frequency: 50 Hz
Short-circuit current: 10 kA
Back-up fuse: 63 A
Operating temperature range: -25°C to +40°C
Humidity: 5% to 95%
Protection class: II
Dimensions WxHxD: 315 x 600 x 145 mm
Weight: 7.5 kg
Housing: Polycarbonate
