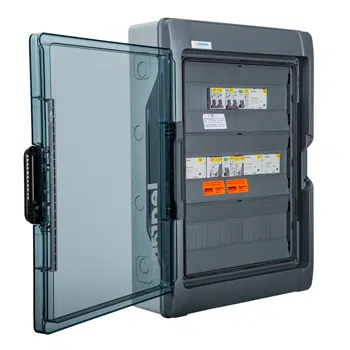

enwitec Grid switch box for SMA inverters – 1x Sunny Island – 10013728
Mains switch box 3AC 230/400V 50Hz
– Connection fuse max. 63A
– All-pole disconnection, TN-S or TT system
– NO TN-C grid in the customer system suitable for
Sunny Island 4.4M-12 / -13 à partir de la version du micrologiciel 1.00.xx.R
Sunny Island 6.0H-12 / -13 à partir de la version du micrologiciel 1.00.xx.R
Sunny Island 8.0H-12 / -13 à partir de la version du micrologiciel 1.00.xx.R Country availability: France, Netherlands, Belgium For further technical information, please download the documentation. Note
Matchcode: 3PH_IPC_SMA.SI_BBDAP_20KW_1PH_PREP_FR_1.0
Article no.: 10013728 Compatible with: SMA
Phases: 3-phase
Mains disconnection: All-pole
Max. thermal throughput: 20 kW
Country code: France, Netherlands, Belgium
NA protection: no
Source switch: no
Nominal voltage: 230/400V
Nominal frequency: 50/60 Hz
Short-circuit current: 10 kA
Back-up fuse: 63 A
Operating temperature range: -25°C to +40°C
Humidity: 5% to 95%
Protection class: II
Dimensions WxHxD: 448x622x161 mm
Weight: 11.5 kg
Housing: Polymer
Description
