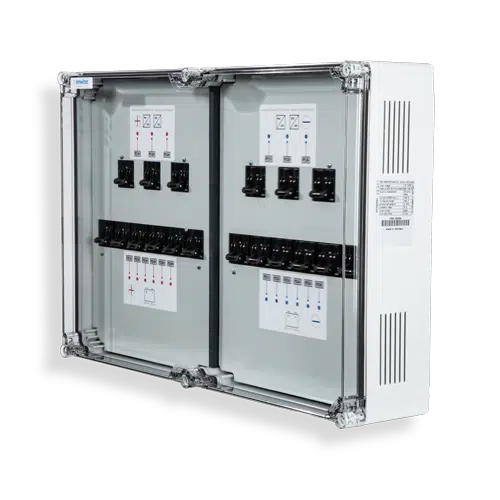

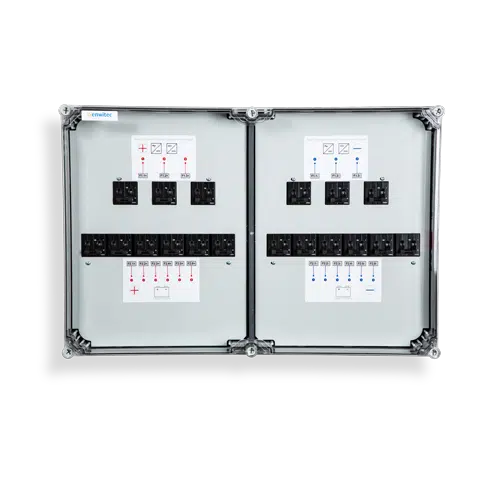

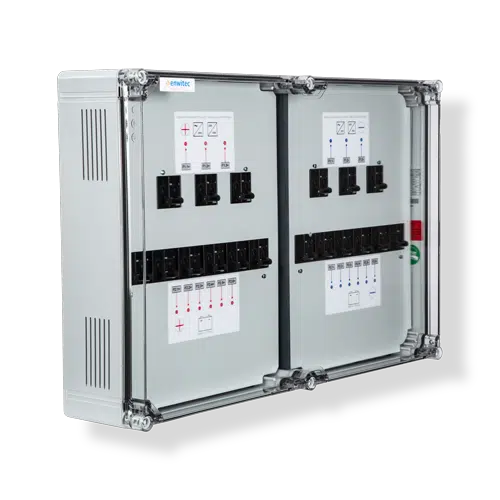

enwitec BAT-BREAKER-Spec. BMZ-EU -6x Accu -3x Charger – 10011583
enwitec battery protection “BAT BREAKER” for the PV energy storage system from BMZ “ESS” Number and type of battery chargers / inverters: Max. 3 x SMA Sunny Island, except SI 8.0 in off-grid mode
Number and type of energy storage units: Max. 6 x BMZ ESS Matchcode: BAT BREAKER-Spec.BMZ-EU -6x Accu -3x Charger
Article no.: 10011583 Fuse type: Magnetic-hydraulic
Number of battery chargers/inverters: Max. 3 x SMA Sunny Island, except SI 8.0 in off-grid mode
Number of parallel battery strings: 2
Rated current: 150A per potential
Triggering characteristic: “DC Long Delay”
Switchable max. short-circuit current: 10kA
Charger/inverter connection: M10 cable lug
Connection to battery: Standard cable lug M8
Temperature range up to: 0°C to +45°C
Relative humidity: up to 85%, non-condensing
Battery cabinet dimensions WxHxD: 200x400x132mm without screw connection
Total weight: 3.7 kg
Description
Additional information
| Number of inverters | 1 |
|---|---|
| Number of batteries | 1 – 2 |
| Voltage | ≤ 75 VDC |
